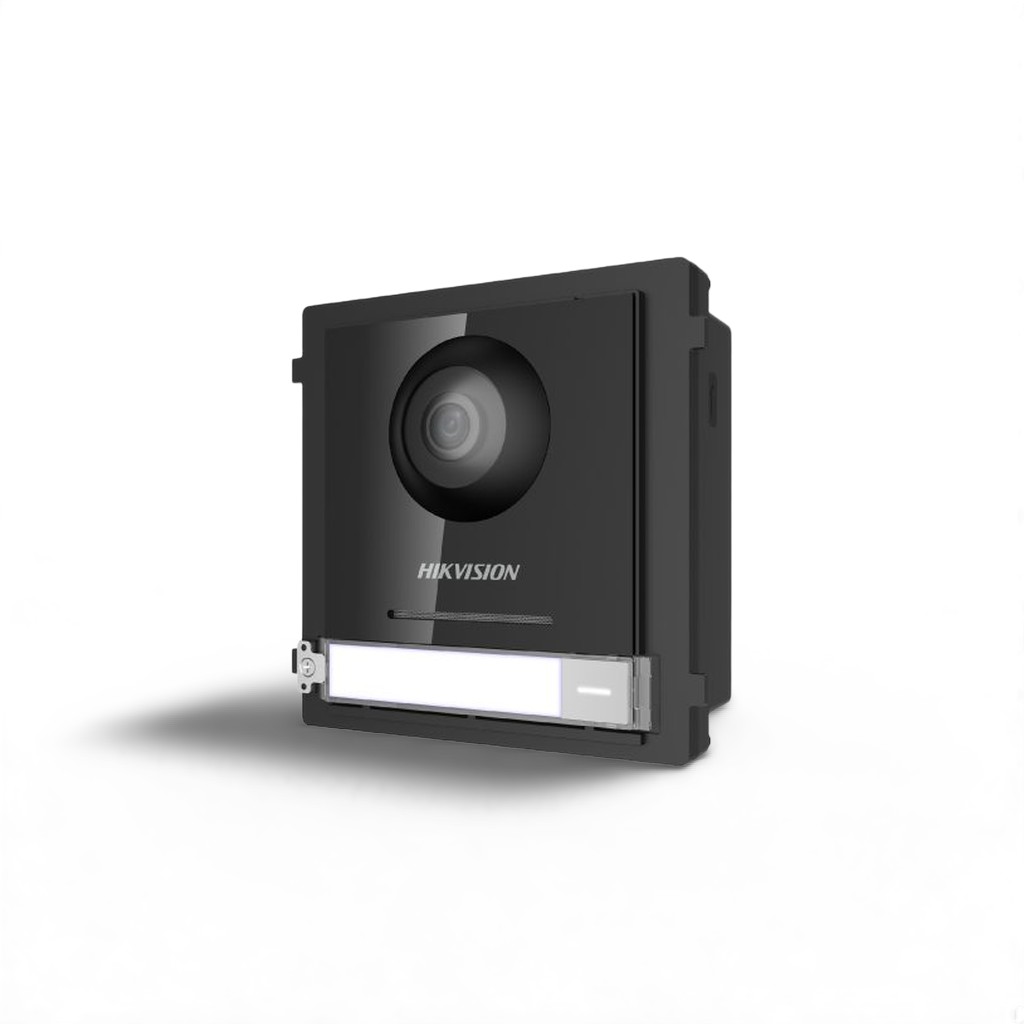

KD8 Series Pro Modular Door Station
- Modular door station Main unit, needs mouting bracket
- 2MP HD Colorful Camera, Fish eye, IR Supplement
- 1 Call physical Button, 2 lock relays, 4-ch alarm input
- IP65, 12 VDC or standard POE
- Video intercom to indoor station and master station
-
Specification
- System Parameters
- ProcessorEmbedded MCU Processor
- Operation SystemEmbedded Linux Operation System
- Video Parameters
- Supplement LightIR Supplement
- Video Compression StandardH.264
- Audio Parameters
- Audio InputBuilt-in Omnidirectional Microphone
- Audio OutputBuilt-in Loudspeaker(More than 85 dB within 20 cm )
- Audio Compression Bitrate64 Kbps
- Audio QualityNoise Suppression and Echo Cancellation
- Network Parameters
- Ethernet10/100 Mbps Self-Adaptive Ethernet
- Network ProtocolTCP/IP, RTSP
- Device Interfaces
- Alarm InputTampering Alarm
- I/O Input4
- I/O Output2
- General
- Power Supply12 VDC/PoE ( IEEE 802.3af)
- Power Consumption≤10 W
- Working Temperature-40° C to +55° C (-40° F to 131° F)
- Working Humidity10% to 95%
- Protective LevelIP65
- Dimensions(L × W × H)98 mm × 99.8 mm × 43.9 mm (3.86″ × 3.93″ × 1.73″)
