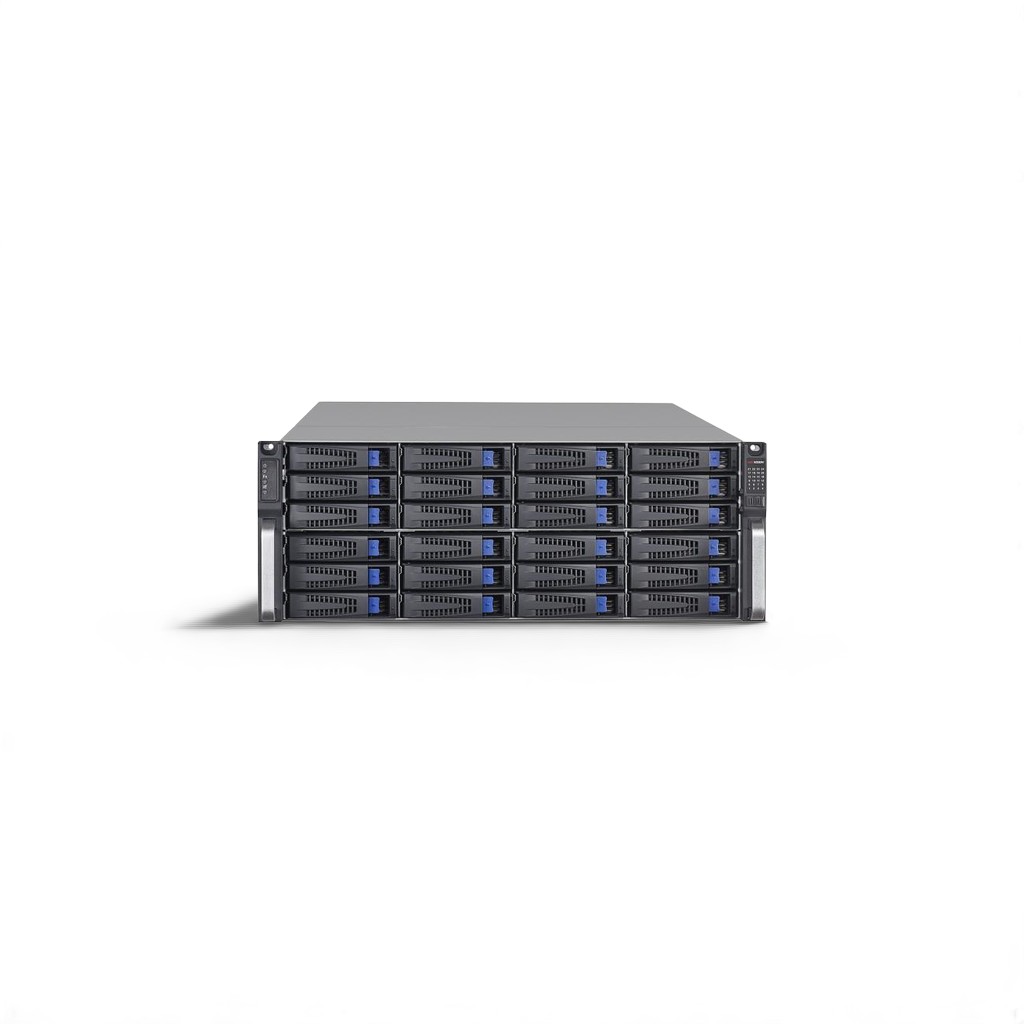

24-slot Cost-efficient Cluster Storage
- Economical and practical hardware platform (24 HDD slot, single controller with one multi-core processor, 16 GB cache)
- Streaming data management structure for high system performance
- Storage virtualization/distribution/scale-out/load balance
- High speed data rebuild at up to 2 TB/ hour
- able to tolerate up to 4 device failure without data loss
- Ultra-fault-tolerant IRAID (based on erasure code) supporting data protection among devices
- User-friendly operation and maintenance
- Micro cluster (2 Mbps)240
- Storage Management
- Cache protectionSupports customizing BBU in case of unexpected power failure to protect the cache data from being lost
- Disk managementDisk detection pre-alarm and repair
- Recording Management
- CVADevice access, recording schedule, and stream forwarding services
- CVSData storage, video/picture access, storage space, and data R/W services
- Network
- ProtocolRTSP;ONVIF;PSIA
- Device Maintenance
- Management modeGUI based on web, serial port CLI, platform
- Alarm modeAudio, indicator, GUI
- Storage
- Interface/capacitySAS, SATA/1TB, 2TB, 3TB, 4TB, 6TB,8TB,10TB,12TB,14TB,16TB
- HDD slot24
- RAIDI RAID: N + M: K, N + M ≤ 16, M ≥ K, N∈[1, 15], M∈[1, 4], K∈[1, 4]
- Performance
- Video performance240
- Picture performance160
- General
- Power supplyRedundant 1 + 1, ≤ 550 W
- Consumption (with HDDs)Appro. 420 W
- Environment temperatureWorking: +5 °C to +35 °C (+41 °F to +95 °F) Storage: -20 °C to +70 °C (-4 °F to +158 °F)
- Dimension (W × H × D)486 x 173 x 760 mm (19.1 x 6.8 x 29.9 in)
- Weight (without HDDs)≤43kg (94.8 lb)
- Controller
- Processor64-bit multi-core processors
- Cache16 GB
- External interface
- USB3 (2 × USB 3.0, 1 × USB 2.0)
- Data network interface6, 1000M Ethernet interface
- MiniSAS interface3, 12 Gbps SAS 3.0 interface
- COM1
- Management network interface1, 1000M Ethernet interface
- HDD
- HDD Model
Hikvision,HK7216AH,16T;
Hikvision,HK7210AH,10T;
Hikvision,HK728TAH,8T;
Hikvision,HK726TAH,6T;
Hikvision,HK724TAH,4T;
Hikvision,DS160HKAI-VX1,16T;
Hikvision,DS80HKAI-VX1,8T;
Hikvision,DS60HKAI-VX1,6T;
Hikvision,DS40HKAI-VX1,4T;
