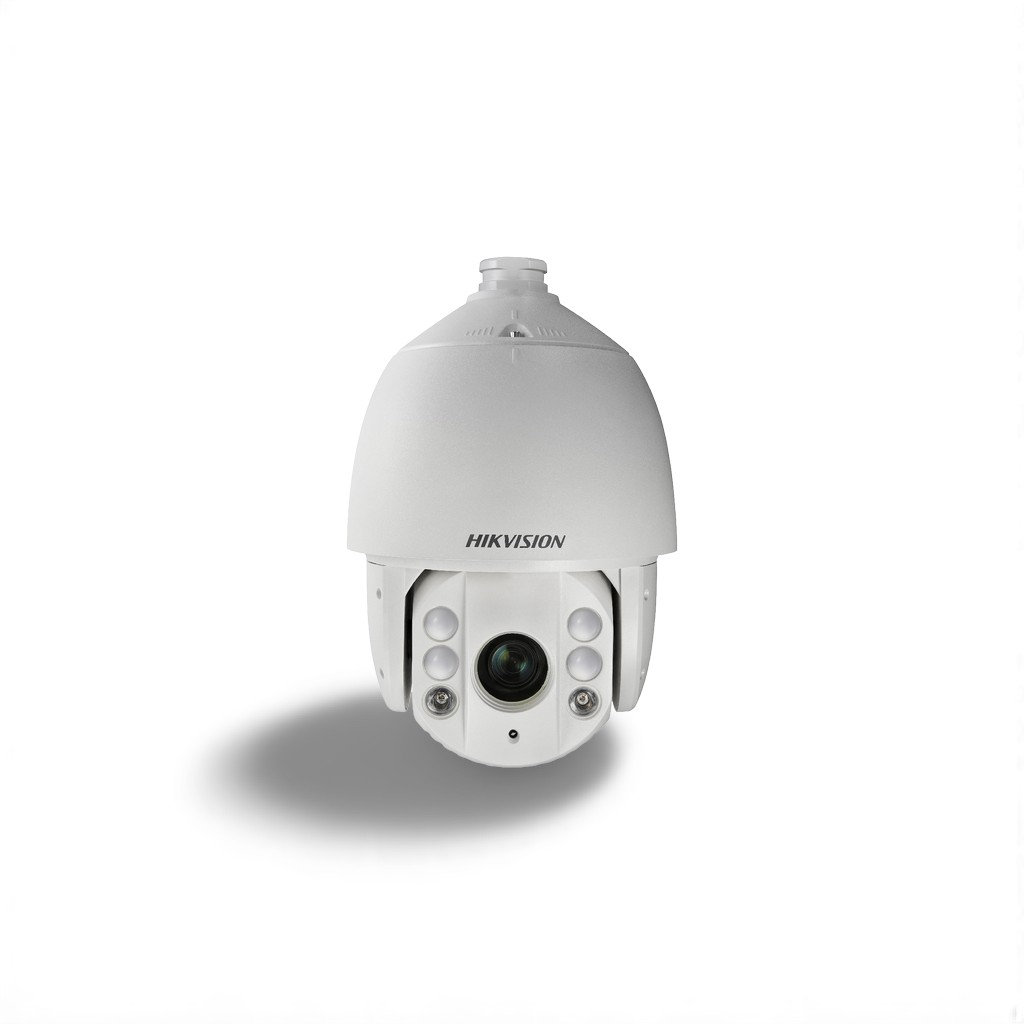

7-inch 2 MP 25X Powered by DarkFighter IR Analog Speed Dome
- High quality imaging with 2 MP resolution
- Excellent low-light performance via powered-by-DarkFighter technology
- Clear imaging against strong back lighting due to 120 dB WDR technology
- Pan and tilt ability enables camera to monitor zones of interest
- 25x optical zoom allows for closer viewing of subjects in expansive areas
- Up to 150m IR range ensures safety at night
- Water and dust resistant (IP66);
-
- Lens
- Zoom SpeedApprox. 3.6 s (optical, wide to tele)
- Working Distance10 mm to 1500 mm (wide to tele)
- Aperture RangeF 1.6 to F 3.5
- Horizontal Field Of View57.6° to 2.5° (wide-tele)
- Focal Length4.8 mm to 120 mm, 25× Optical
- Image
- Max. Resolution1920 × 1080
- Camera Module
- Frame Rate
50Hz: 25fps @(1920 × 1080)
60Hz: 30fps @(1920 × 1080)
- AGCAUTO/MANUAL
- DNR3D DNR
- Regional FocusYes
- Image Sensor1/2.8″ progressive scan CMOS
- ModelDS-2AE7225TI-A(C)
- Min. Illumination
Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON)
0 lux with IR
- White BalanceAUTO/MANUAL/HAUTO/ATW/INDOOR/OUTDOOR
- Shutter Time
PAL: 1/1 s to 1/10,000 s
NTSC: 1/1 s to 1/10,000 s
- Day & NightIR cut filter
- Digital Zoom16×
- Privacy Mask8 programmable privacy masks
- Focus ModeAuto/Semiauto/Manual
- WDR≥ 120 dB
- BLCYes
- HLCYes
- EISYes
- PTZ
- Movement Range (Pan)360° endless
- Pan Speed
Pan manual speed: 0.1° to 160°/s
Pan preset speed: 160°/s
- Movement Range (Tilt)-15° to 90° (auto flip)
- Tilt Speed
Tilt manual speed: 0.1° to 120°/s
Tilt preset speed: 120°/s
- Proportional ZoomRotation speed can be adjusted automatically according to zoom multiples
- Presets256
- Patrol Scan10 patrols, up to 32 presets per patrol
- Pattern Scan5 patterns, with the total recording time no less than 10 minutes
- Power-Off MemoryYes
