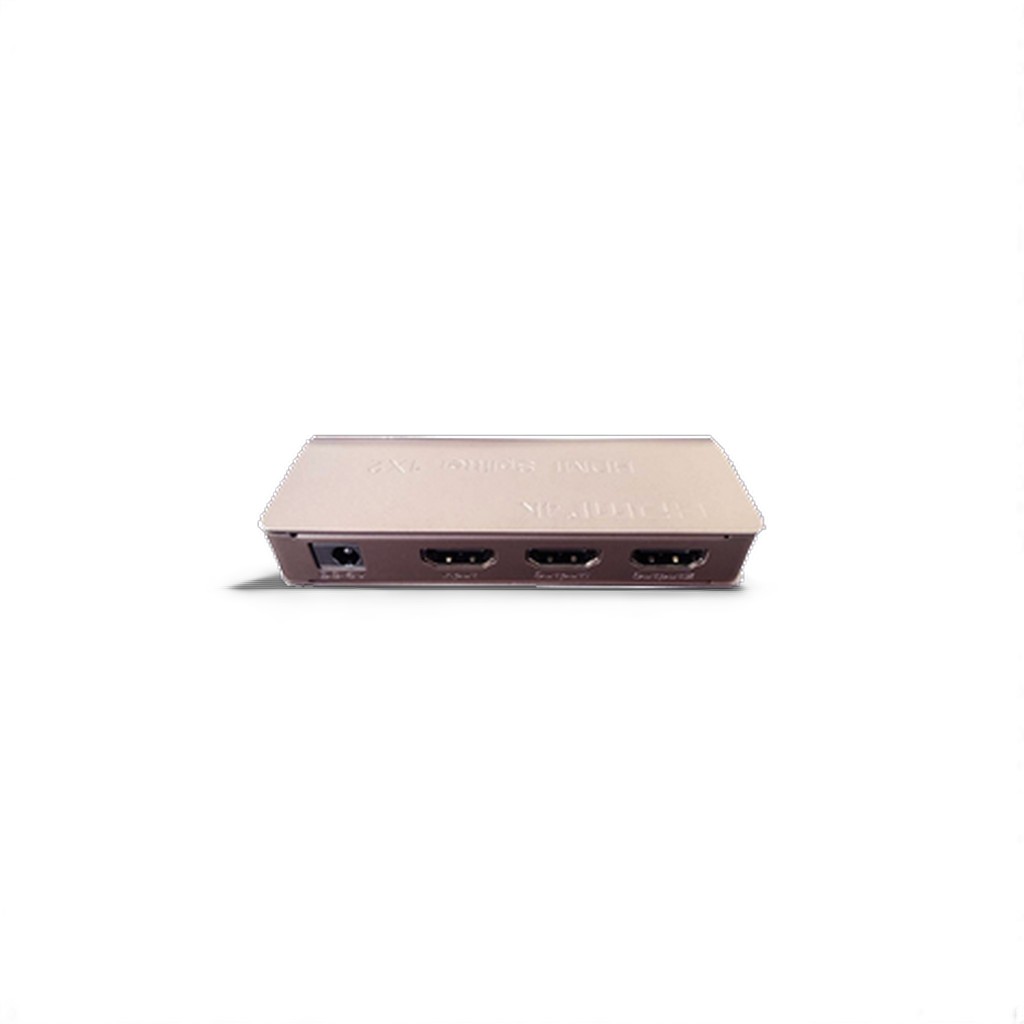

This mini 1×2 HDMI 4K splitter uses a single HDMI source, accessing to multiple HDMI sinks .It allows one HDMI device to be split easily to two HDMI compatible monitors or projectors.
In addition it can also be placed at the end of a long HDMI cable to regenerate the HDMI signal. The resolution of this HDMI splitter can be up to 3840×2160/30Hz
Features
Support HDMI 1.4b version
Support 3D video format
Support high resolution up to 3840×2160/30Hz
Support highest rate of 3.4 G and TMDS clock can be up to 340 MHz
Support 8/10/12 bit deep color
Support AWG26 HDMI standard cable: input up to 15 meters, output up to 15 meters. When the resolution is 4K, input up to 8 meters, output up to 8 meters)
Support one single HDMI source, accessing to multiple HDMI sinks, the source can be DVD player, A/V receiver, set-top box and etc
5V power adapter
Specification
HDMI 1.4b
HDMI resolution up to 3840×2160/30Hz
Support video color format 8/10/12 bit deep color
Support audio format DTS-HD/Dolby-true HD/DTS/Dolby-AC3/DSD
Max bandwidth 340MHz
Max baud rate 3.4Gbps
Input cable distance 1080p resolution ≤15m. 4K resolution ≤8m AWG26 HDMI standard cable
Output cable distance 1080p resolution ≤15m. 4K resolution ≤8m AWG26 HDMI standard cable
Max working current 500mA
Power adapter format input AC (50Hz, 60Hz) 100V-240V; output: DC5V
Operating Temperature range -15ºC ~+55ºC
Operating Humidity range 5 to 90%RH No Condensation
Dimension (L x W x H) 103x42x16mm
Weight 100g
