תיאור מוצר
[product_table id=”50689″]

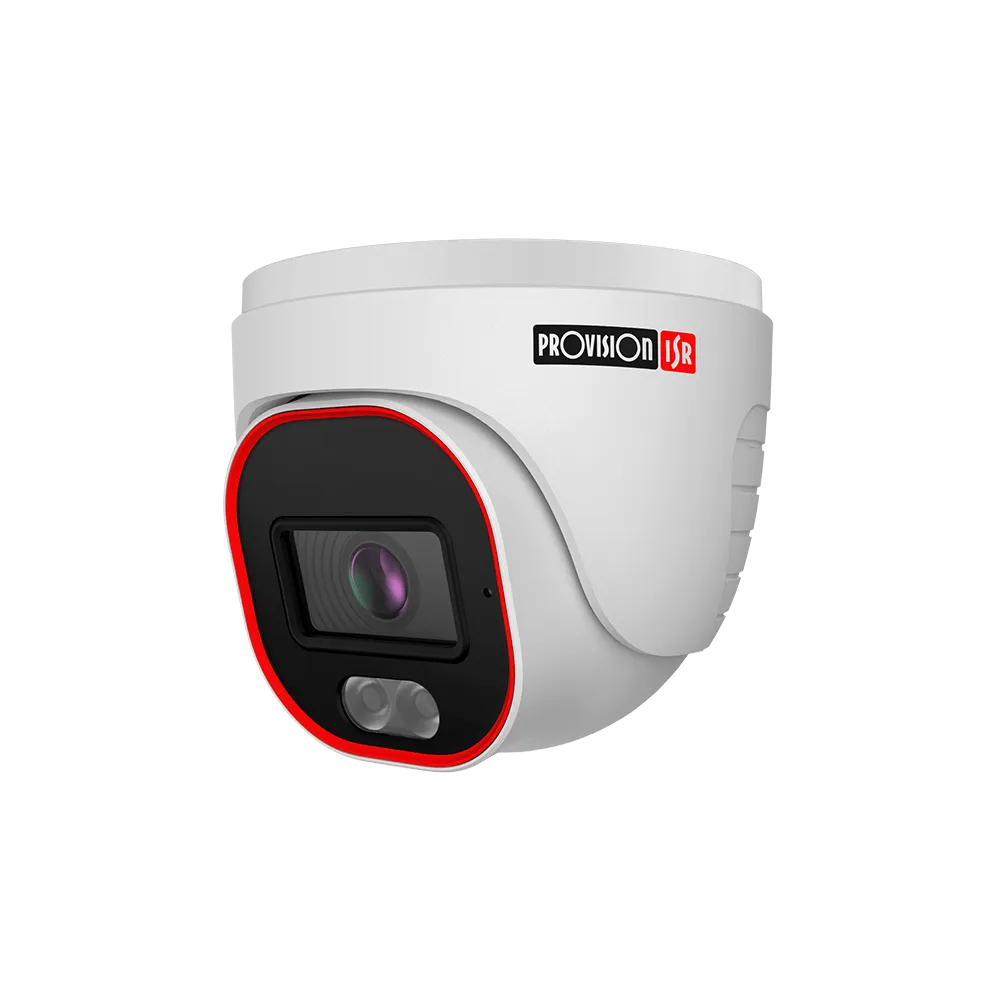

• DH-340IPBN-28 4MP Fixed Turret Camera with Hybrid LED and DDA1 Analytics
• Sensor: 1/3″ CMOS (16:9)
• Resolution: 2560×1440 25/30FPS (4MP)
• Lens: 2.8mm (93°)
• True Day&Night – ICR
• Illumination: 20m (1 High-Power IR LED) + 20m (1 High-Power White LED)
• Compression: H.265+/ H.264+ / H.265 / H.264 / MJPEG
• General Analytics: Camera Tampering
• AI (Object Recognition): DDA Sterile Area, DDA Line Crossing Human only
• Digital WDR, BLC, HLC, ROI
• Built-in Microphone
• ONVIF: Profile S
• Water Proof: IP67
• Weight: ~290g
• Power: DC12V/~350mA / PoE/~4.5W
Video:
- Input: 4 Channel Support
- 4 Channel PoE / Standard Network Connection (Via 4 x RJ-45 / Network)
- Output: HDMI / VGA (1080P, 1280×1024, 1024×768)
Bandwidth:
- Incoming: 24Mbps
- Outgoing: 24Mbps
Decoding Support:
- H.265S/H.265+/H.265/H264
Analytics:
- Camera Tampering, DDA2 With Object Classification, Line Crossing (DDA / Pixel Based), Sterile Area (DDA / Pixel Based), Object Monitoring, Object Counting (DDA), Crowd Gathering, Smart Search, LPR, Loitering Detection, Illegal Parking, Audio Exception
- *DDA/LPR Analytics Live Snapshots are not supported
Recording:
- 4CH 5MP Real-Time
- FPS: 100 (PAL) / 120 (NTSC)
Playback:
- Local: 4Ch Simultaneously
- Remote: 4Ch Simultaneously
Audio:
- Input: IPC Inputs Only
- Output: IPC Outputs Only
Alarm:
- Input: Based on IPC Only
- Output: Based on IPC Only
Storage:
- 1 x SATA (Up to 6TB each)
USB Port:
- 2 USB 2.0 Port
Network:
- 1 x RJ-45: 10/100Mbps Each
Remarks:
- The following features are based on firmware v1.4.10_70351 and are subject to firmware version changes.
-
NVR5 4100PX+(MM) BackPanel
