Small but Mighty: Unleash Connectivity

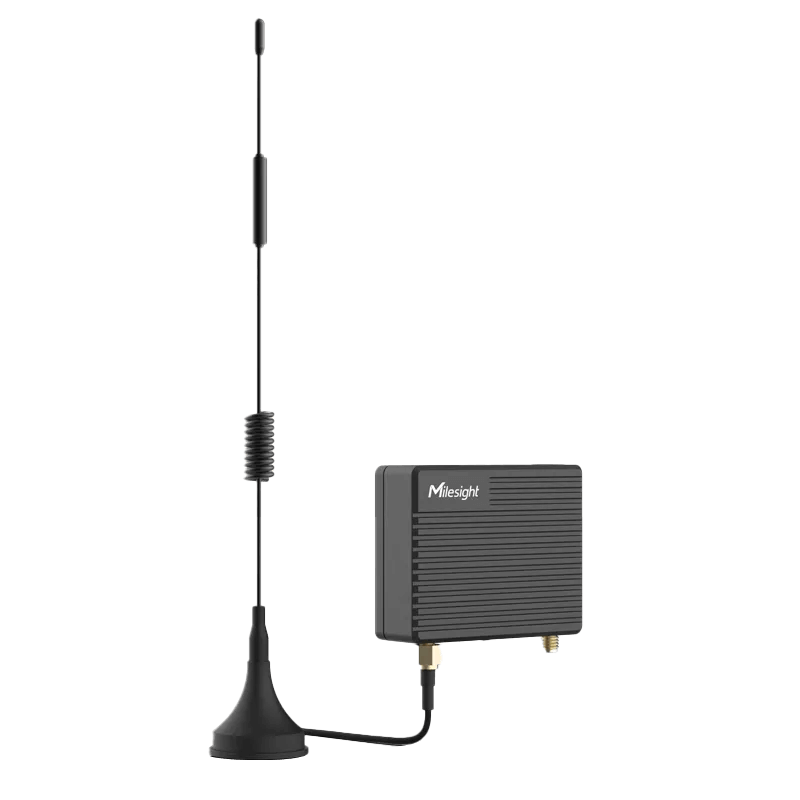

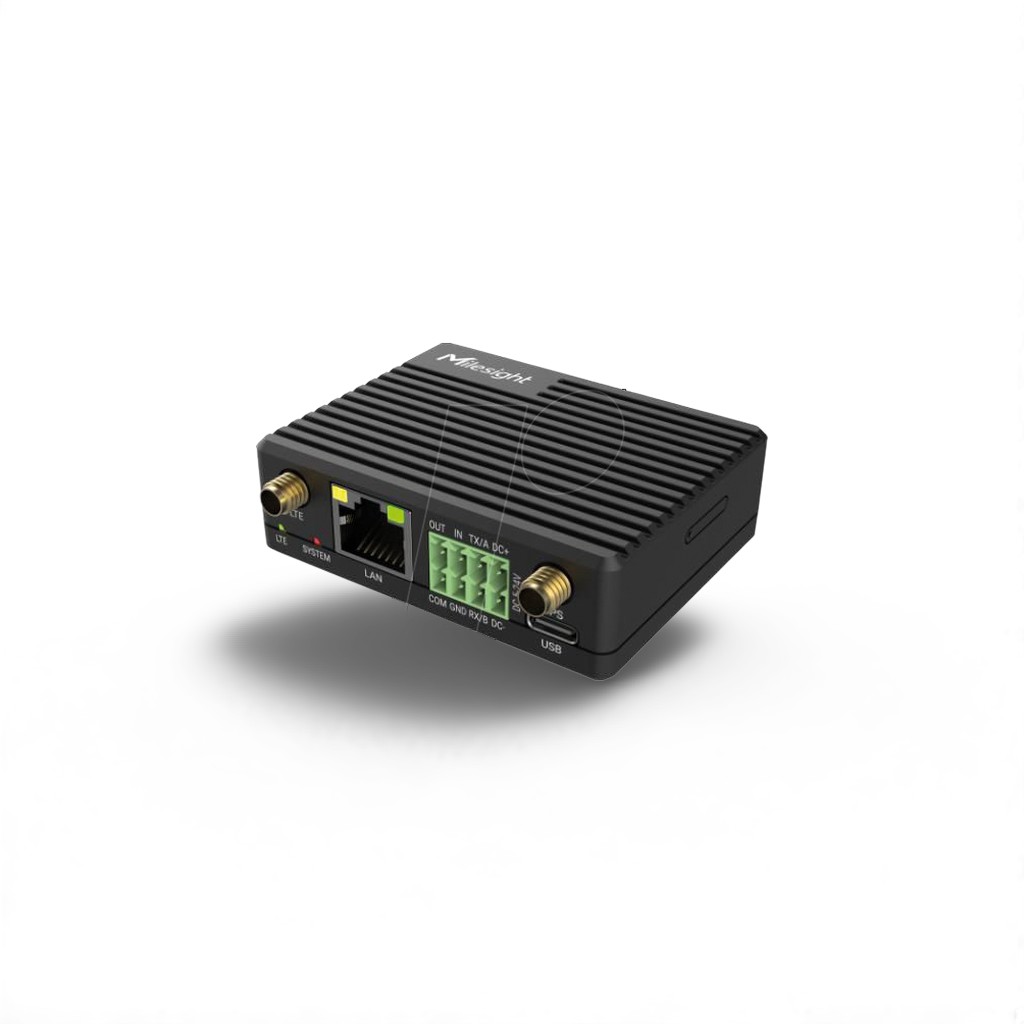

UR41 is a compact size 4G router for IoT applications with low-cost and high efficiency.
4G Connectivity in Small
Embedded Scenes
- Palm-Sized and Lightweight Design
- Global 4G LTE CAT4/3G Network with Multiple Carrier Networks
Ultra-Low-Power
Consumption Ever
Milesight UR41 is designed to operate on limited power sources through advanced power management, which make it an ideal battery-powered and solar-powered applications
- Typical: 226mA
- Maximum: 260mA
*Power consumption calculation based on 12V rated voltage
**Power consumption may vary under different operating environment and conditions
***Typical power consumption calculation based on cellular network and IPC
Advanced Power Management
with Less than 1 Watt in Idle Mode
- Power consumption as low as 60mA in idle mode
- Fast network response from standby mode triggered by timers, DI, Cellular, Ethernet or serial port
- Protect power sources by dropping power consumption to a target of 6.3mA in standby mode
*Power consumption calculation based on 12V rated voltage
**Power consumption may vary under different operating environment and conditions
Maximum Uptime from Safe
and Stable Data Transmission
Failover Back-up Connectivity
- Automated failover/failback backup between Ethernet and Cellular
- Embedded with hardware watchdog to automatically recover from various failures
Security Protection
- Local authentication and remote authentication (RADIUS, TACACS+, LDAP) management to control access to devices in the field
- Encryption for data privacy over the Internet through VPN tunnels (Open VPN/IPsec/GRE/L2TP/PPTP/DMVPN)
Industrial Grade Design for Harsh Environment
- NXP industrial grade processor
- Wide Operating Temperature Range (-40°C to 60°C)
- Broad supply voltage range (5V to 24V DC)
- Metal IP30 enclosure for various usage
GPS and Global Navigation Satellite System (GNSS) Included
- GPS and GNSS (Galileo, Glonass, and Beidou) are included
- Capability of real-time location tracking of remote assets
- Availability of network clock updates for accurate time-stamp usage
*GPS function requires matching with antenna accessories to achieve
Rich Interfaces for Intelligent
Building and Process
Automation Controllers
- 1 × RS232 or 1 x RS485 (Software Switchable)
- 1 × Digital Inputs + 1 × Digital Outputs
- USB 2.0 (Type-C) for Power Supply, Network Supply and Debug
*Equipped with a DIP switch for RS485 devices with an impedance of 120Ω
The Perfect Choice for Various Applications
In Small Embedded Scenario
In Small Embedded Scenarios
EV Charging Station Solution
A well-networked charging station can not only facilitate a smooth energy exchange between vehicles and the power grid, but also allow the stations to connect and exchange data. Check how we can help you to achieve it with UR41.
MilesightVPN
UR41 supports connection and management with MilesightVPN
- Easy Connection via Authentication Code
- Connection Status Overview
- Remote and Secure Access to Field Devices
- Magnetic Version
DeviceHub
Milesight DeviceHub offers a high-efficiency and low maintenance solution to easily deploy Milesight Industrial Cellular Routers across multiple locations, reducing complexity and increasing productivity.
- Central Management
- Device Status Monitoring
- Remote & Bulk Configuration
Flexible Installation
Wall Mounting 1
Wall Mounting 2
Desktop Mounting
