מצלמת IP כיפה ברזולוציה של 12MP, 12M 1/1.7″ STARVIS CMOS,ICR, עדשה חשמלית4.1-16.4 מ”מ, ZOOMX12 Dahua IPC-HFW81230E-ZE

 4,193.00

משלוח UPS

משלוח UPS ב-65 שח תוך 48 שעות למוצרים במלאי

מק"ט IPC-HFW81230E-ZE קטגוריה
תיאור

IPC-HFW81230E-ZE

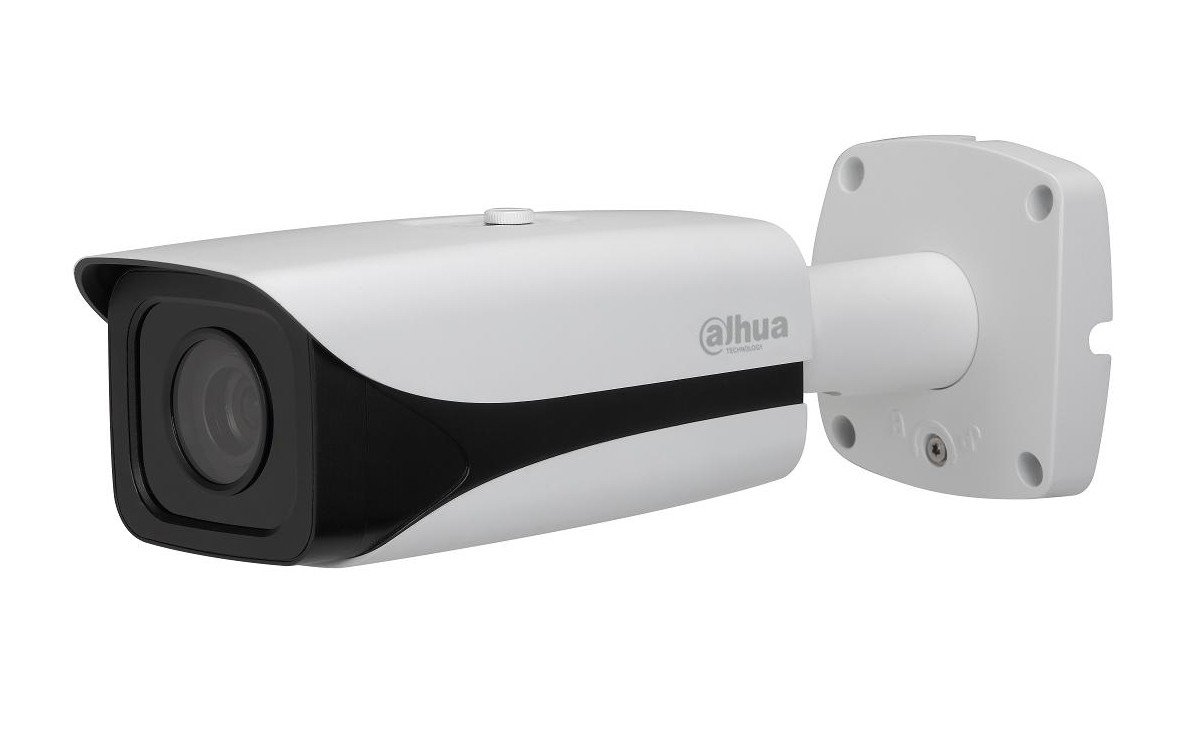

12MP IR Bullet Network Camera

> 1/1.7” 12Megapixel progressive scan STARVISTM CMOS
> H.265&H.264 triple-stream encoding
> 20fps@12M(4000×3000),25/30fps@4K(3840×2160)
> DWDR, Day/Night(ICR), 3DNR,AWB,AGC,BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 4.1mm ~16.4mm zoom lens
> Max. IR LEDs Length 50m
> Micro SD memory,IP67,IK10,PoE+

  • Specifications
  • Accessories
  • Download
  • Product Selector

    Camera
    Image Sensor 1/1.7” 12Megapixel progressive scan CMOS
    Effective Pixels 4000(H)x3000(V)
    RAM/ROM 1024MB/128MB
    Scanning System Progressive
    Electronic Shutter Speed Auto/Manual, 1/3~1/100000s
    Minimum Illumination 0.01Lux/F1.53(Color,1/3s,30IRE)

    0.1Lux/F1.53(Color,1/30s,30IRE)

    0Lux/F1.53(IR on)

    S/N Ratio More than 50dB
    IR Distance Distance up to 50m(164ft)
    IR On/Off Control Auto/ Manual
    IR LEDs 4
    Lens
    Lens Type Motorized /Auto Iris(HALL)
    Mount Type Board-in
    Focal Length 4.1~16.4mm motorized
    Max. Aperture F1.53
    Angle of View H: 105°~35°, V:77°~26°(12MP,4:3)

    H: 101°~32°, V:57°~18°(8MP,16:9)

    Optical Zoom 4x
    Focus Control Motorized
    Predictive Focus Algorithm (PFA) Support
    Close Focus Distance 0.5m(1.64ft)
    DORI Distance Lens Detect Observe Recognize Identify
    W 115m(377ft) 46m(151ft) 23m(75ft) 11m(36ft)
    T 227m(909ft) 111m(364ft) 55m(180ft) 28m(92ft)
    Pan/Tilt/Rotation
    Pan/Tilt/Rotation Range Pan:0˚~360˚; Tilt:0˚~90˚; Rotation:0˚~360˚
    Intelligence
    Event Trigger Motion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access,Storage anomaly
    IVS Tripwire, Intrusion, Object Abandoned/Missing
    Advanced Intelligent Functions Face Detection, People Counting, Heat Map
    Video
    Compression H.265/H.264/H.264B/H.264H/MJPEG(Sub Stream)
    Smart Codec Support H.265+/H.264+
    Streaming Capability 3 Streams
    Resolution 12M(4000×3000)/ 4K(3840×2160)/ 6M(3072×2048)/ 5M(2560×1920)/ 3M(2048×1536)/ 3M(2304×1296)/ 1080P(1920×1080)/ 1.3M(1280×960)/ 720P(1280×720)/ D1(704×576/704×480) / VGA(640×480)/CIF(352×288/342×240)
    Frame Rate Main Stream: 12M(1~20fps)/ 4K(1~25/30fps)
    Sub Stream: D1 (1 ~ 25/30fps)
    Third Stream: 1080P(1~25/30fps)
    Bit Rate Control CBR/VBR
    Bit Rate H.264: 24~ 16384Kbps H.265: 14~ 9984Kbps
    Day/Night Auto(ICR) / Color / B/W
    BLC Mode BLC / HLC / DWDR/ SSA
    White Balance Auto/Natural/Street Lamp/Outdoor/Manual
    Gain Control Auto/Manual
    Noise Reduction 3D DNR
    Motion Detection Off / On (4 Zone, Rectangle)
    Region of Interest Off / On (4 Zone)
    Electronic Image Stabilization (EIS) Support
    Smart IR Support
    Defog Support
    Digital Zoom 16x
    Flip 0°/90°/180°/270°
    Mirror Off / On
    Privacy Masking Off / On (4 Area, Rectangle)
    Audio
    Compression G.711a/G.711Mu/AAC/ G.726
    Network
    Ethernet RJ-45 (100/1000Base-T)
    Protocol HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP;

    FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;

    NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;SNMP;TLS

    Interoperability ONVIF Profile S&G, API
    Streaming Method Unicast / Multicast
    Max. User Access 10 Users/20 Users
    Edge Storage NAS

    Local PC for instant recording

    Mirco SD card 128GB

    Web Viewer IE, Chrome, Firefox, Safari
    Management Software Smart PSS, DSS, DMSS
    Smart Phone IOS, Android
    Certifications
    Certifications CE (EN 60950:2000)

    UL:UL60950-1

    FCC: FCC Part 15 Subpart B

    Interface
    Video Interface 1 Port(For adjustment only)
    Audio Interface 1/1 channel In/Out
    RS485 N/A
    Alarm 2 channel In: 5mA 5VDC

    1 channel Out: 1A 30VDC / 0.5A 50VAC

    Electrical
    Power Supply DC12V, PoE+(802.3at)(Class 4)
    Power Consumption <13W
    Environmental
    Operating Conditions -40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH
    Storage Conditions -40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH
    Ingress Protection IP67
    Vandal Resistance IK10
    Construction
    Casing Metal
    Dimensions 273.2mm×95.0mm×95.0mm (10.76”×3.74”×3.74”)
    Net Weight 1.12Kg (2.47lb)
    Gross Weight 1.52Kg (3.35lb)
