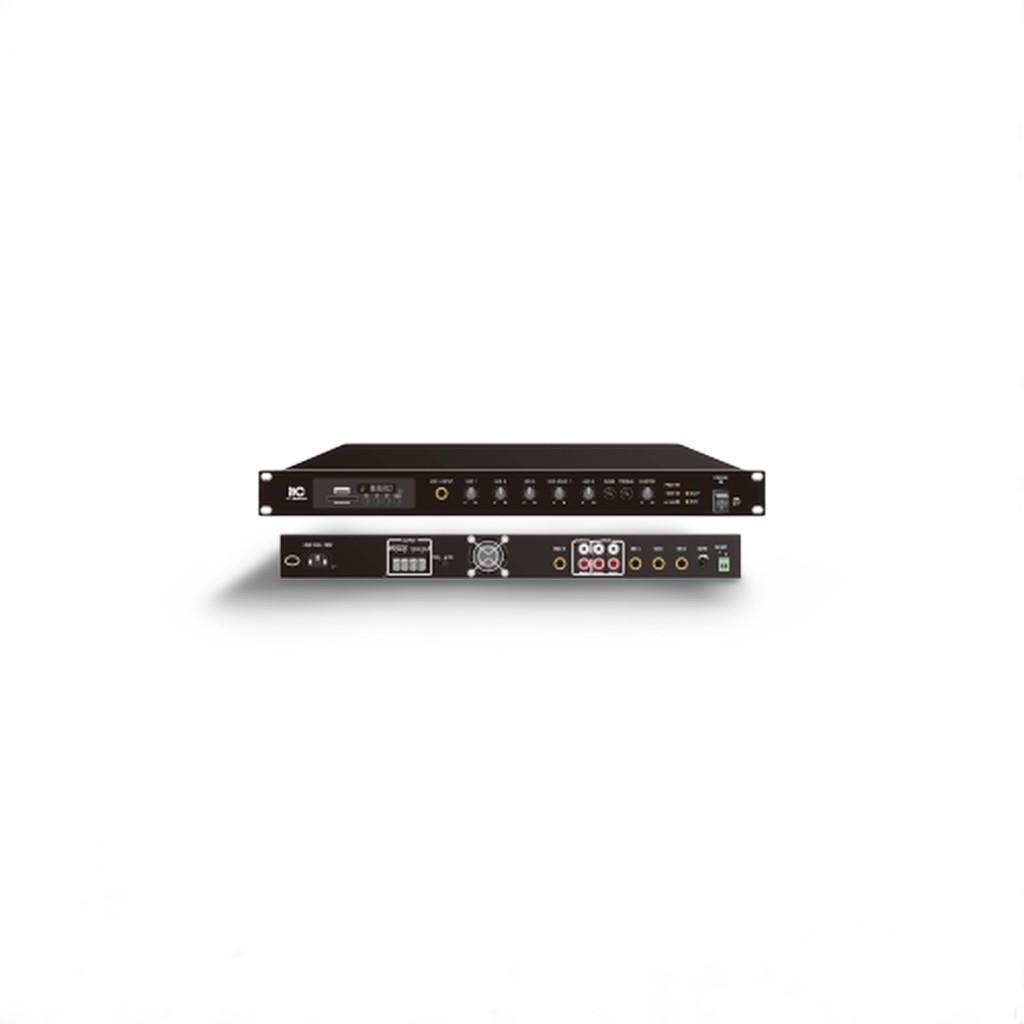

מגבר מיקסר דיגיטלי 1U 120W USB/SD/TUNER/BLUETOOTH 24VDC ITC T-120DTBV

In stock

1800

  • EMC: קיים
  • כניסות נוספות: 2
  • רדיו: קיים
  • Bluetooth: קיים
  • MP3: קיים
  • כניסות מיקרופון: 4
  • עוצמת הגברה: 120W
  • דגם: T-120DTBV
  • משלוח UPS לחנויות איסוף עצמי 7 ימי עובדה עד 5 קילו: ₪ 35.00
  • משלוח UPS ללוקר 5 ימי עבודה עד 5 קילו: ₪ 35.00
  • משלוח UPS מהיר תוך 72 שעות שהמוצר במלאי עד 13 קילו: ₪ 75.00
  • איסוף עצמי – בתיאום מראש בטלפון
מק"טT-120DTBV

תיאור מוצר

  • EMC: קיים
  • כניסות נוספות: 2
  • רדיו: קיים
  • Bluetooth: קיים
  • MP3: קיים
  • כניסות מיקרופון: 4
  • עוצמת הגברה: 120W
  • דגם: T-120DTBV
  • T-60DTBV/T-120DTBV / T-240DTBV / T-350DTBV / T-500DTBV Digital Mixer Amplifier with MP3/Tuner/Bluetooth (Phone Jack Mic Input, with 24VDC)

    Description:

    Digital Mixer Amplifier with mp3/TUNER/Bluetooth for small and medium sized background music occasion such as small supermarkets, shopping malls, and cafes.

    Features:

    * Standard rack mounted design (1U), exquisite SMT technology.

    * With MP3 function module, adopt LCD display, support playback of various file formats in U disk such as MP3, WMA, APE, FLAC, WAV, and AAC; with TF card, support mobile phone Bluetooth function, and can display song names.

    * Support mp3/TUNER/Bluetooth remote control function.

    * 1 channel EMC input, 2 channels AUX input, 4 channels MIC input.

    * Channel priority: EMC >MIC1>MIC2, MIC3, AUX1, AUX2

    * Each channel has independent volume control function; master input has volume control and treble/bass control

    * The machine is equipped with level indication, overload and protection indicator.

    * The device has good self-protection such as short circuit, overload and overheating.

    * Two output modes: constant voltage output 100V, 4-16Ω.

    * Energy-efficient switching power supply combines with energy-saving and ultra-stable design of Class D amplifiers

    * Wide voltage supply: 180V-240V can work normally.

    * Support backup power supply 24V no delay switching.

    Specifications:

    Model T-60DTBV T-120DTBV T-240DTBV T-350DTBV T-500DTBV
    Output 4-16Ω, 100V
    RMS Power 60W 120W 240W 350W 500W
    Input Sensitivity & Impedance MIC1, 2, 3, 4 input: 5mV/600Ω, unbalanced 6.3 connector;
    AUX1, 2 input: 350mV/10KΩ, unbalanced RCA connector;
    EMC input: 775mV/10KΩ, unbalanced 6.3 connector
    Output Sensitivity & Source Impedance MIX OUT: 1000mV/470Ω, unbalanced RCA connector
    Tone Bass: ±10dB at 100Hz;
    Treble: ±10dB at 10KHz
    Frequency Response 50Hz~16KHz(+1dB,-3dB)
    SNR MIC1, 2, 3: 66dB; AUX1, 2: 80dB
    THD Less than 0.5%( at 1KHz, 1/3 rated power)
    Mute Control MIC 1 priority over MIC2-4, AUX1-2 audio input;
    EMC has highest priority
    Channel Crosstalk Attenuation ≥50dB
    Heat Dissipation Flank in and rear panel out to force fan cooling, fan starts when amplifier turned on, infinitely variable speed
    Protection Over-heat, overload, short circuit
    Power Supply AC ~220-240V /50Hz
    Power Consumption 120W 180W 300W 500W 650W
    Dimension 484x300x44mm
    Weight 3.5 Kg 3.7Kg 3.8Kg 4.0Kg 4.1Kg
