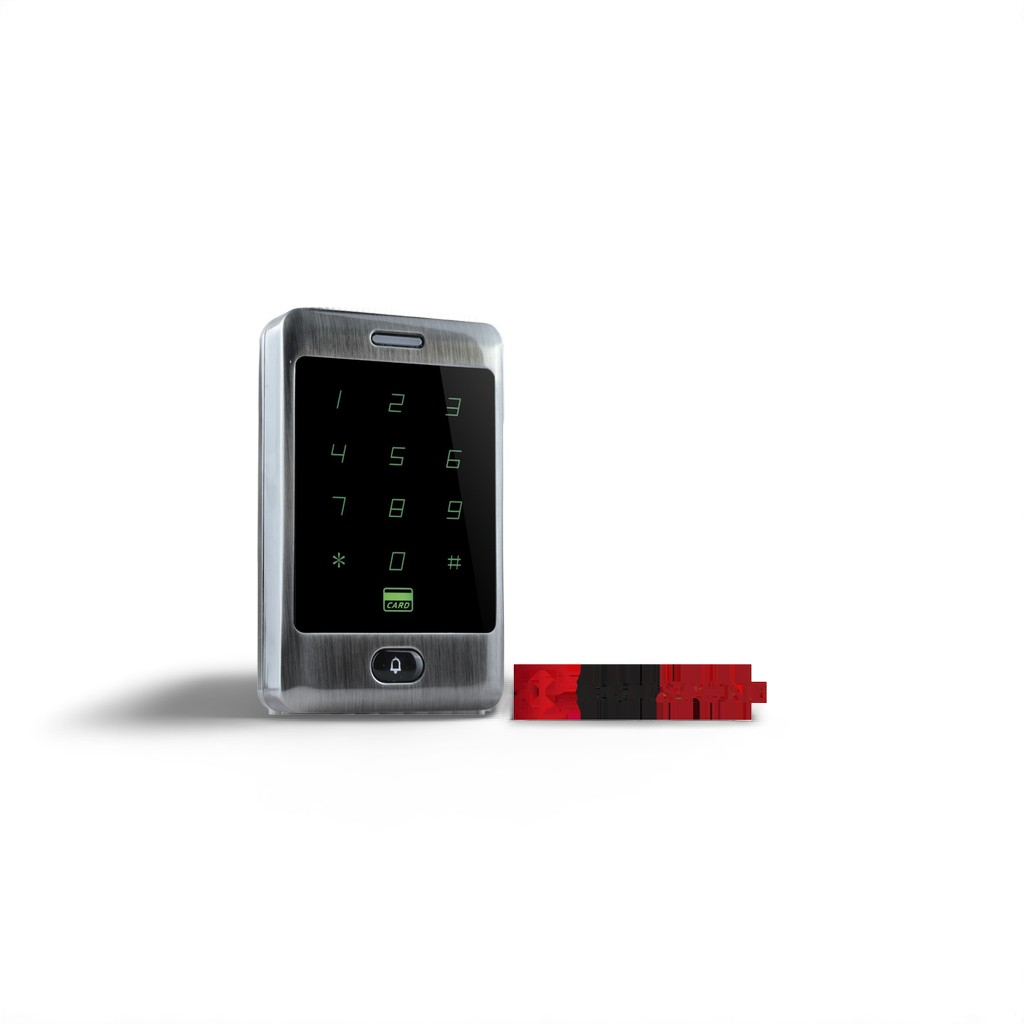

Touch panel, door bell button
Metal case with blue backlight
WD 26/34 input/output
Support Card< PIN, Card+PIN
Full programming from the keypad
Humanized tamper alarm function
Can set up a management card
Active and passive lock signal output
Imported double point relay output signal
Contactless for RFID transponder technology
Connection for external release button – EXIT button
Memory capacity: 8000 user cards
Does not need to connect on PC, it can works alone
Power Supply: 12VDC + 12%/1.2A
Unlock relay: 12VDC/2A
Memory capacity: 8000 users, 8000 pcs of cards
Work temperature: -10 ~ 55°C
Relative humidity: Work: 40% ~ 90%
Password: 4 digit PIN code
Card identifying type: EM or compatible
Card reader range: ID type: 5 – 15cm
Add-in Reader Interface: 1WG26 interface
Dimension: 116x70x21mm
RFID Keyfobs
Material: ABS
Frequency: 125KHz
Chip available: 125KHz TK4100
Working distance: 1 ~ 10cm
Working temperature: -25 ~ +75°C
Storage temperature: -15 ~ +45°C
Multi-access and Anti-jamming
